Files #

/files lists the artifacts in the FileStore — images, waveforms, byte streams, and any other file a test recorded via observe(name, value) or files.write(...). Each row links to a per-artifact detail page with an inline viewer and a download button.

Reach it from the Files entry under DATA STORES in the sidebar.

Filters #

Filter widgets render above the table:

Type — dropdown of the MIME types (or file extensions) actually present, (any) by default.
Filename contains — case-insensitive substring match on the filename.
Since / Until — created-at date window.
Session — set only by deep-links from a run (/results/{run_id} → Files), shown as a banner with a Clear affordance. There is no session picker; operators scope by date / name / MIME, not by session UUID.

Table #

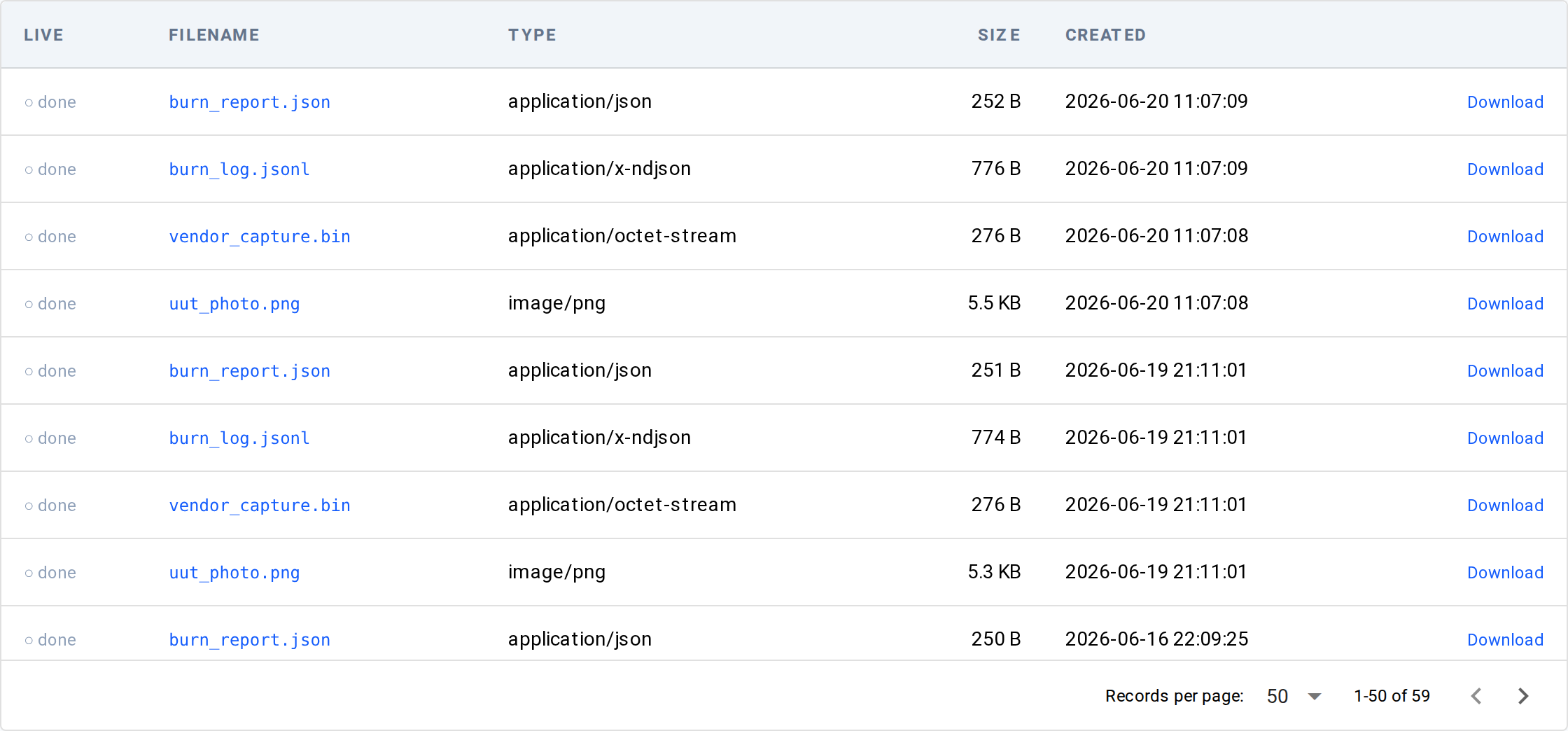

Files — artifact list

One row per artifact:

Column	Meaning
Live	`● live` while the artifact is still being written (a stream), `○ done` once finalized.
Filename	The artifact's name (the `name` passed to `observe` / `files.write`, plus the format's extension).
Type	The recorded MIME type, or the file extension when the sidecar MIME is absent.
Size	Human-readable file size.
Created	When the artifact was written.
Download	A link that saves the artifact.

Clicking a row opens /files/{date}/{session_id}/{filename}.

Detail page — viewer + download #

The detail page shows a metadata card (MIME, extension, size, modified, and the session it belongs to) and an inline viewer chosen by file type. Supported viewers:

Image (.png, .jpg, …) — rendered inline.
Video (.mp4, .webm) — played inline.
JSON — pretty-printed.
JSONL (.jsonl, .ndjson) — one row per line in a table.
CSV — parsed into a table.
Text (.txt, .log, .md) — shown as plain text.
NPZ — a Waveform chart.
NPY — array stats.
Anything else, or files over the viewer size cap — a hex / download fallback.

The Download button saves the artifact rather than rendering it inline; it works on every deployment.

Bookmarkable URL state #

The list mirrors its filters into the URL (?mime=, ?name=, ?since=, ?until=, ?session_id=), so a filtered view is shareable. The detail page's URL is the artifact's full key — /files/{date}/{session_id}/{filename}.

Underlying data #

Rows come from the FileStore catalog (the litmus_files MCP tool and GET /api/files/catalog expose the same list), never from a directory scan.
