Dashboard #

URL: /

The home page. Two short sections: configured stations as cards, and recent runs as a compact table. For a fresh install with neither stations nor runs, the page swaps to a three-step Getting Started card instead.

Stations #

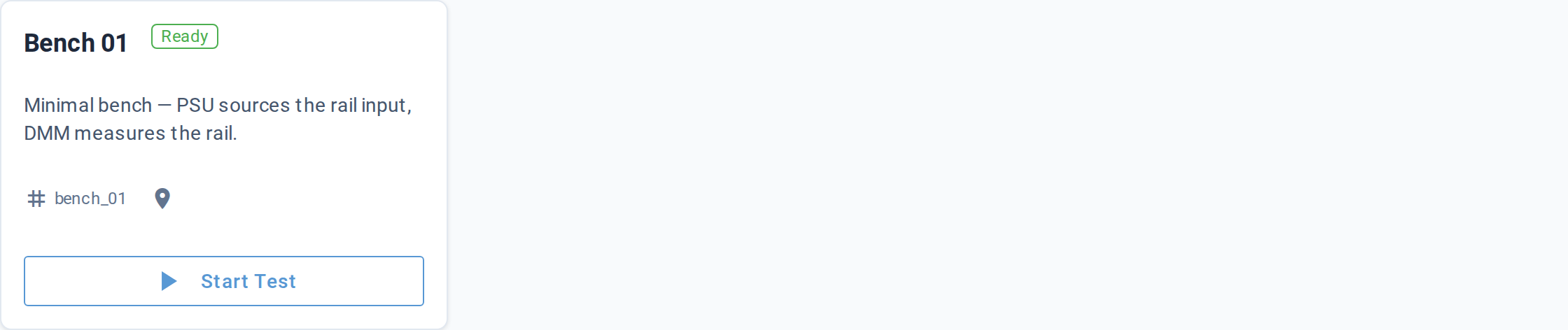

Dashboard — stations

One card per station configured in the project. Each card shows:

Element	What it shows
Title	Station name (falls back to the station id if the name is left blank)
Status badge	A green outlined `Ready` badge
Description	The station's description, when set
Identifier row	Station id + location, prefixed with tag and pin icons
Start Test button	Jumps to `/launch?station=<id>` (Launch Test, prefilled with this station)

When no stations are configured but runs exist, the section renders an empty-state card naming the cause and the next step — add a station YAML under stations/.

Recent Runs #

Dashboard — recent runs

A 10-row table of the most recent finished runs across the project. Runs still in progress (not yet finished) are NOT shown here — open the Results list to see them. The Dashboard's table is deliberately a quick-glance summary.

Column	What it shows
UUT	UUT serial number
Station	Station hostname (the machine an operator recognizes), not the internal station id
Started	Run start timestamp, browser-local time
Outcome	Outcome status; a bell badge appears (linking to the live view) when the run has operator dialogs waiting

Click a row to open the Results detail for that run.

When no runs have been recorded yet, the section renders an empty-state card naming the cause and the next step — launch a test to populate the list.

Getting Started (empty state) #

When the project has neither stations nor runs, the page swaps to a Getting Started card with three numbered steps:

Create a station — buttons for "New Station" (jumps to the create-station form) and a one-liner pointing at litmus station init on the CLI
Write a test — litmus new-test <name> command snippet
Run it — pytest --mock-instruments command snippet

Below the steps, a hint card points at litmus init --starter for authors who'd rather start from a fully populated example project.

Live updates #

The Dashboard loads its data once when you open the page; it doesn't update live — refresh the browser to pick up new runs or station changes. (The one exception: a run's pending-dialog bell badge refreshes on its own every second.)

Underlying data #

Stations come from the local project's stations/ directory
Recent runs come from the same runs index as Results list

Common tasks #

Open a station's launch form — click Start Test on the station card
Drill into the latest run — click any row in Recent Runs
Bootstrap a fresh project — follow the three steps in the Getting Started card
